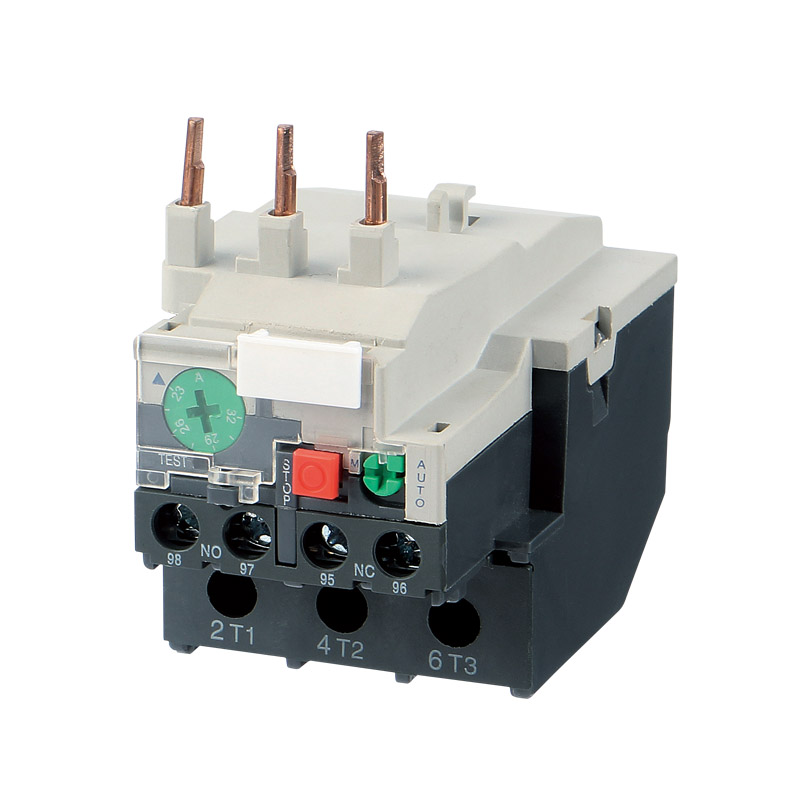

WPR9 Series Thermal Relay
WPR9 series thermal overload relay are suitable for overload and phase-failure protection of AC motors with frequency of 50/60Hz, voltage up to 690V, current up to 0.1-150A under 8-hours duty or uninterrupted duty.Functions provided by these relays, are phase-failure protection, ON/OFF indication, temperature compensation, and manual/automatic reset.Applicable Standard:IEC 60947-4-1
The relays can be mounted onto contactors or installed as single units.
JR28 Thermal Relay
JR28 series thermal overload relay are suitable for overload and phase-failure protection of AC motors with frequency of 50/60Hz, voltage up to 690V, current up to 0.1-150A under 8-hours duty or uninterrupted duty.
Functions provided by these relays, are phase-failure protection, ON/OFF indication, temperature compensation, and manual/automatic reset.
Applicable Standard: GB 14048.
International Standard: IEC 60947-4-1
The relays can be mounted onto contactors or installed as single units.
JR28N Thermal Relay
JR28N series thermal relay is suitable for using in the circuits rated voltage up to 660V, rated current 93A AC 50/60Hz, for over-current protection of AC motor. The relay has the differential mechanism and temperature compensation and can plug in CJX2N series AC contactor. The product conforms to IEC 60947-4-1 standard.
