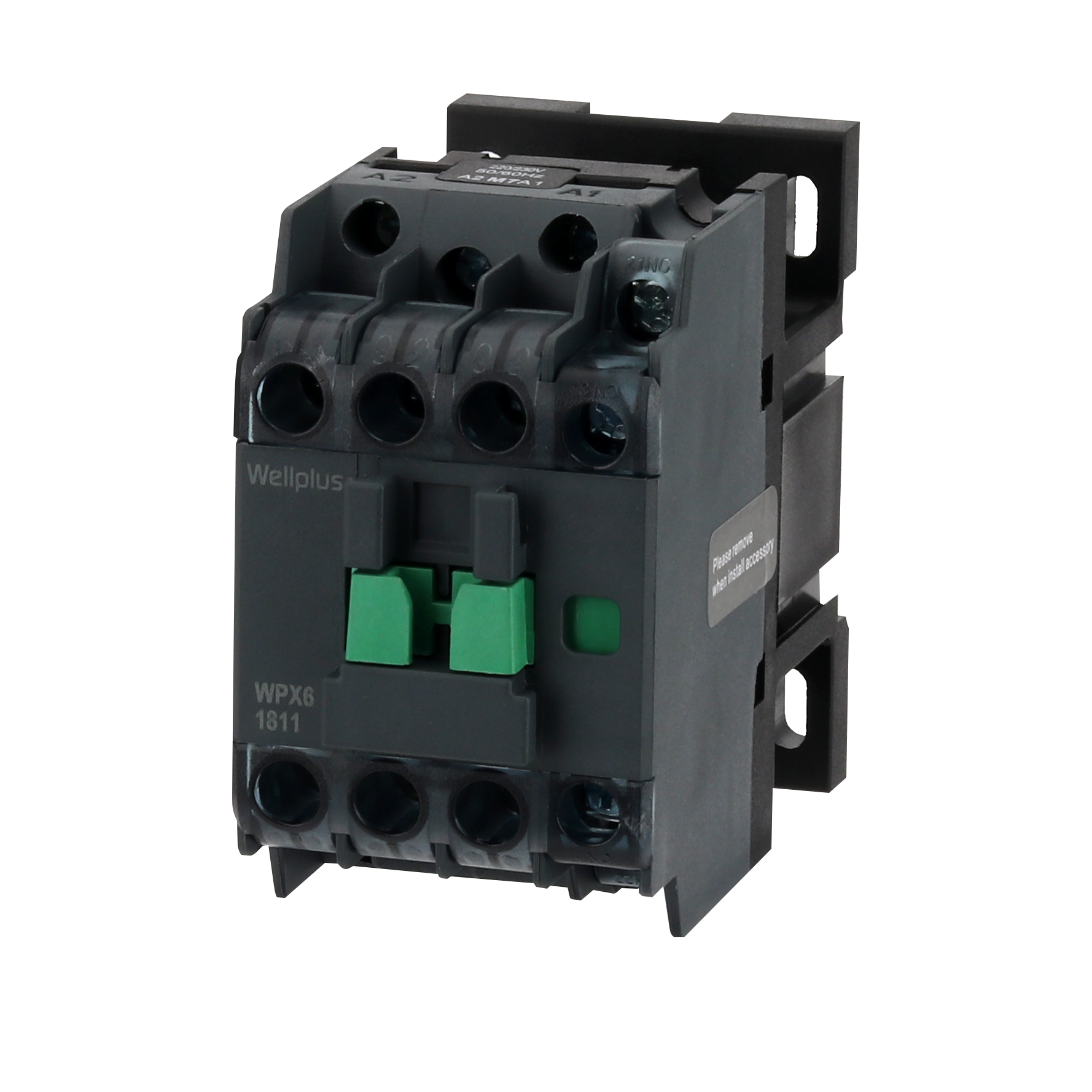

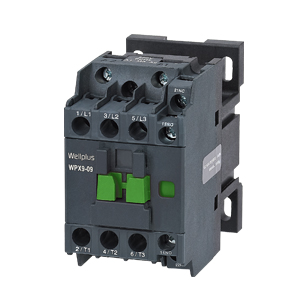

WPX9 series AC Contactor with novel appearance and compact structure is suitable for using starting & controlling the AC motor frequently, switching on and off the circuit at a long distance. It is used in combination with thermal relay to compose a magnetic motor starter. Standard: IEC 60947-1, IEC 60947-4-1.

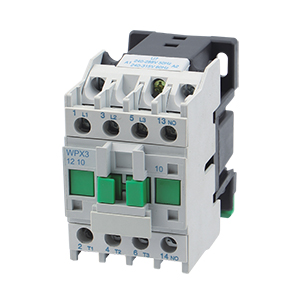

WPX3 series AC Contactor is suitable for using in the circuits of rated voltage up to 660V AC 50Hz or 60Hz, rated current up to 95A, for making, breaking, frequently starting & controlling the AC motor. Combined with the auxiliary contact block, timer delay & machine-interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. The Contactor is producedaccording to IEC 60947-4.

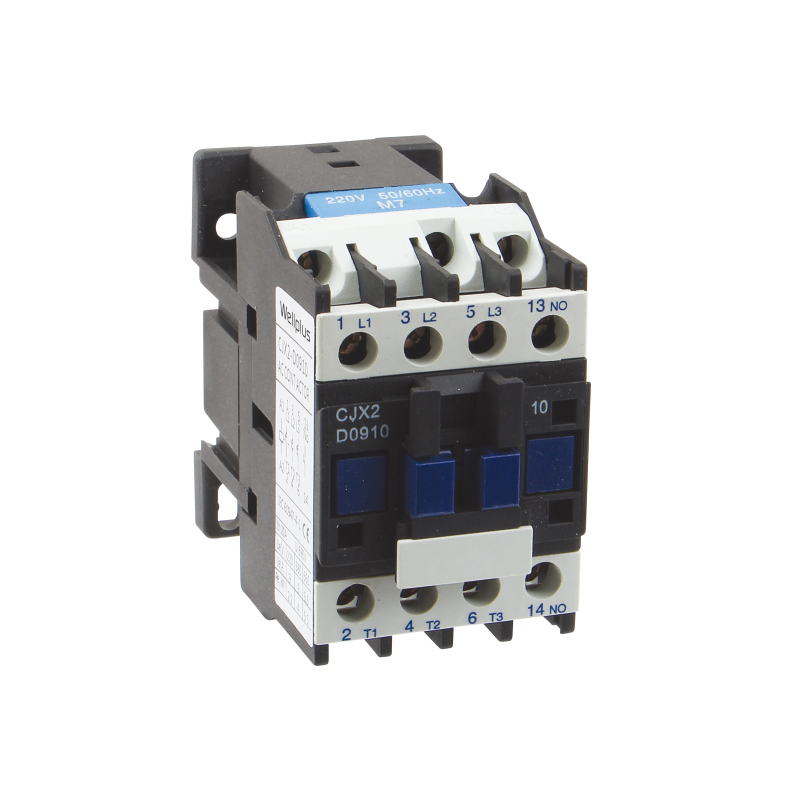

CJX2 series AC Contactor is suitable for using in the circuits of rated voltage up to 660V AC 50Hz or 60Hz, rated current up to 95A, for making, breaking, frequently starting & controlling the AC motor. Combined with the auxiliary contact block, timer delay & machine-interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. The Contactor is producedaccording to IEC 60947-4.

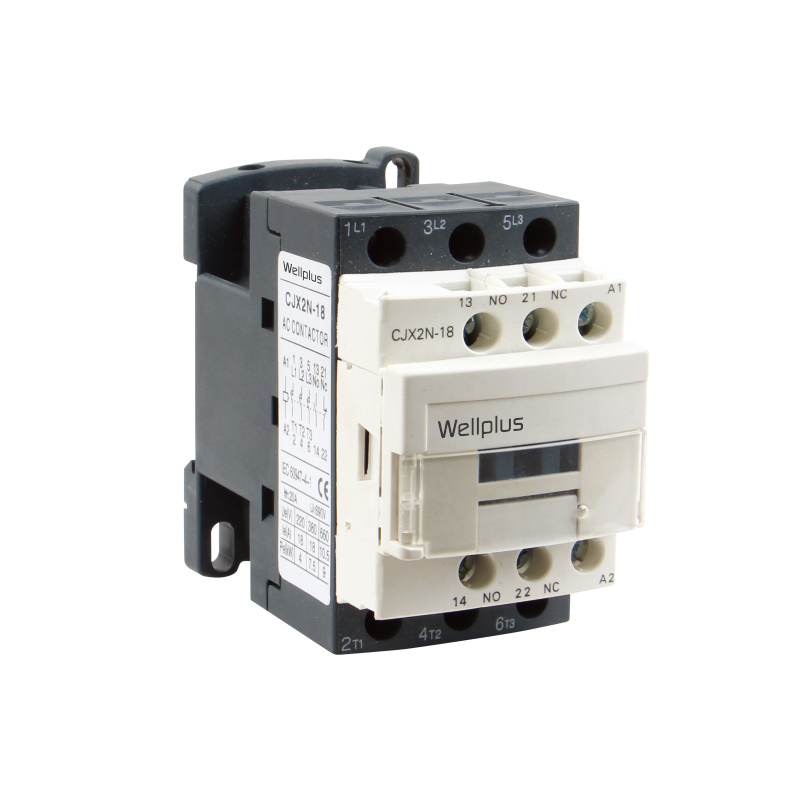

CJX2N series AC contactor is suitable for frequency 50/60Hz, rated insulation voltage up to 1000V, rated operation current 9~150A under AC~3 duty. It is mainly used for making/breaking electric circuits at a long distance & for frequent starting/stopping & controlling AC Motors. It is used in combination with thermal relay to compose a magnetic motor starter. The products comply with IEC60947-4-1 standard.

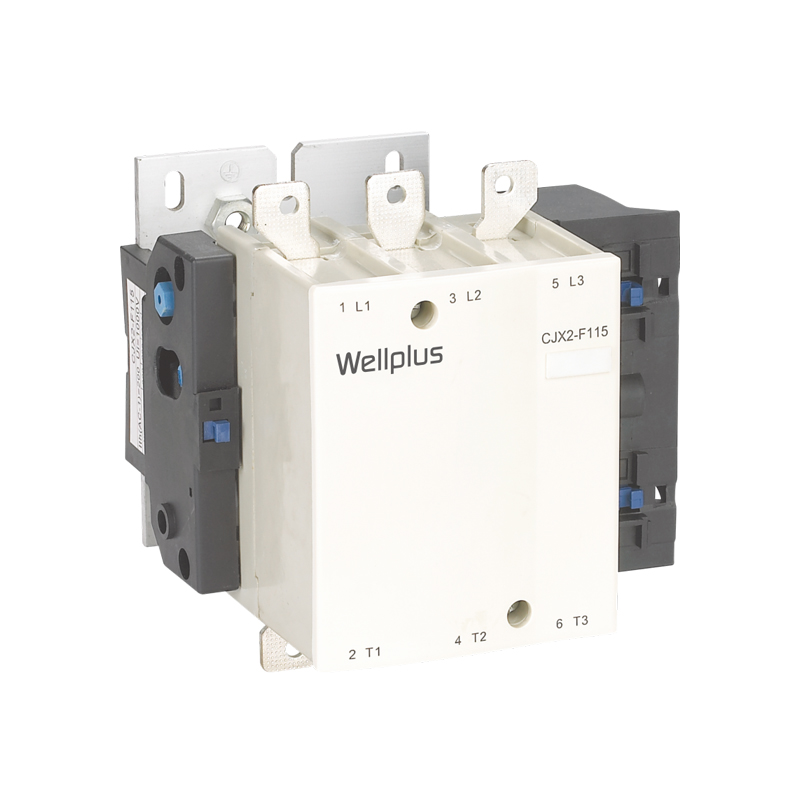

CJX2-F series AC Contactor is applied to the circuit rated voltage up to 1000V AC. 50/60Hz,rated current up to 780A, for long distance breaking circuit and frequently starting or controlling the motor. It also can be used for the control of distributing circuits of rated current from 200A to 1600A(AC-1)/115A to 780A(AC-3).The products comply with IEC60947-4.

CJX2-E series AC Contactor (contactor for short), is mainly used in circuit of AC 50Hz or 60Hz, rated voltage to 660v and below, DC voltage to 220v and below, or in circuit of AC-3 type, 380V operating voltage, rated current to 9A.

CJX2-K series AC Contactor is suitable for using in the circuits the rated voltage up to 660V AC 50Hz or 60Hz, rated current up to 12A in AC-3 using category , for making & breaking, frequently starting & controlling the AC motor. Combine with the auxiliary contact block, timer delay & machine- interlocking device etc, it becomes the delay contactor,mechanical interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. The contactor is produced according to IEC 60947-4.

WPCH6 series modular AC contactor is suitable for using in the circuits the rated voltage up to 400V AC 50Hz or 60Hz and rated current up to 63A to control household electrical appliances or similar components. And it also can be used to control household motor by decreasing the power.
Application: House, hotel, apartment etc. to achieve automatic feature. It's applied in mass produced household electrical appliances.
Standards: GB17885, IEC61095

CJX2-Z series DC operated contactor is suitable for use in the circuits up to rated voltage 660V DC 50Hz or 60Hz, and in rated current 9-95A in DC-3/380V load circuits. For remote controlling circuit making, breaking and frequent starting DC motors. It can also combine with the auxiliary contact group, air delayer, thermal relay devices etc.

CJ19 series AC Contactor is suitable for using in the circuits the rated voltage up to 380V AC 50Hz or 60Hz.CJ19C is used to combine with low voltage reactive power compensators or cut offlow voltage shunt capacitor. CJ19 series AC Contactor has restraining device to effectively decrease impact caused by inrush transient current when switch on or over voltage when switch off.
